125kg Stainless Steel Drawer Slides 250 to 1000mm – Kitchens, 4WD, Marine

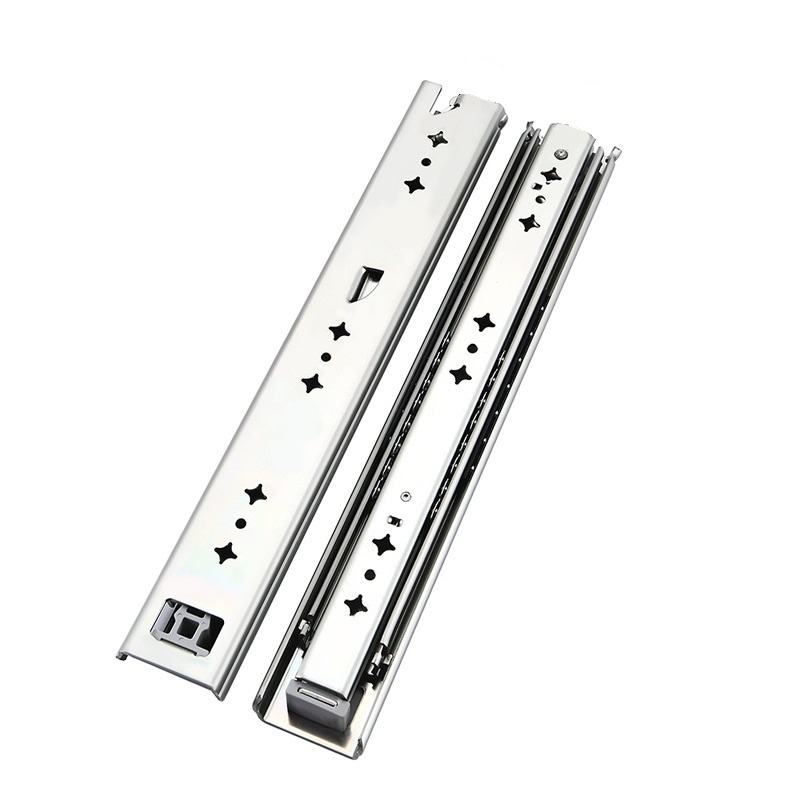

1 Pair 125kg Stainless Steel Drawer slides Our Stainless Steel 125kg locking drawer slides are great for marine, outdoor and other corrosive environments. Made from 304 grade stainless, these medium duty slides feature full extension and a lock in lock out mechanism. Features: Load capacity: 125kg/pair Available in Lengths: 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 950mm, 1000mm Material & finish: Stainless Steel 304 Note: Ball bearings and cage are also stainless steel Fitting to the side panel: Screw fixing Fitting to drawer: Screw fixing, side mounted. Locking leaver adds 25mm to overall closed length. Please note a few things to consider during installation. When marking hole placements, you MUST NOT drill through the slide holes during installation. Doing this will create metal filings which lodge in the tracks resulting in rough running and ultimately, failure of the slides. Depending on substrate, stainless steel ‘flat head’ hex screws with NY-lock nuts or stainless-steel rivets are recommended. There must be no rubbing of the fixing against the moving slides. This will cause failure of the slide.
